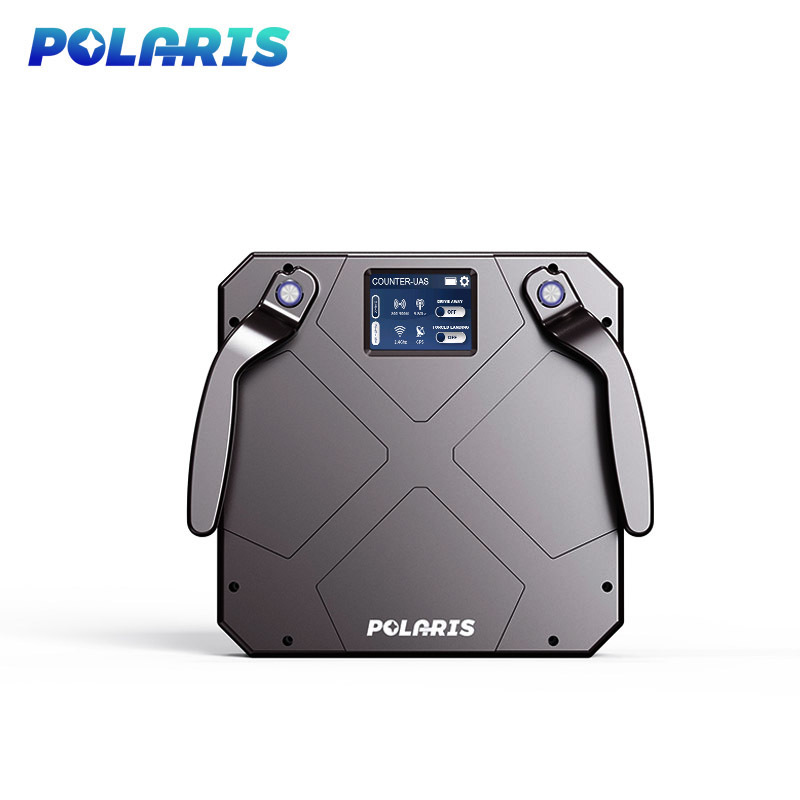

Advanced IP55 Drone Detector For All - Weather Operation
Introduction
The UAV Detector ushers in a new era of drone threat detection. By
merging 360° passive surveillance with cutting-edge signal
analysis, it achieves unparalleled precision in pinpointing
unauthorized UAV operations. Differing from conventional radar
setups, it functions passively, refraining from emitting any active
signals. This not only allows for covert deployment in sensitive
regions but also eradicates the risk of being counter-detected.
Equipped with multi-sensor arrays and powered by AI algorithms, it
conducts comprehensive scans across a full 360° horizontal plane
and vertical spaces. It captures diverse electromagnetic signatures
from drones, such as those from remote controls and Wi-Fi
connections, and even discerns motor noise patterns. This enables
it to accurately distinguish between commercial drones and
custom-built, potentially dangerous ones, achieving an impressively
low false alarm rate.
Integrating FPGA-accelerated processing, the UAV Detector can
perform real-time analysis of multi-band spectra. Its low-power
design further ensures scalability, making it an ideal solution for
a wide range of applications, including airports, critical
infrastructure protection, and military installations. With passive
detection as its fundamental strength, this system redefines UAV
security, providing silent, all-round protection that can adapt to
the ever-evolving drone threat landscape.
Basic
Function | Descriptions |
Defensive Interference | 433Mhz, 800Mhz, 900MHz, 1.5ghz, 2.4ghz, 5.8ghz etc. Support
dicrtional or omnidirectional antenna |
Frequency bandwidth | 2.4Ghz, 5.8Ghz,5.2Ghz |
Drone identify | More 200 models |
Driction Finding | Yes |
Detection range | Up to 3km base on the environment |
Weight | 10kg |
Feature
Function | Descriptions |
Working Duration | ≥1h |
Screen size | 3.5” |
Power consumption | ≤30w |
Interference radius | 1-2km |
Weight | 3.5kg |
Dimension | 300mm*260mm*140mm |
International Protection | IP55 |
Interface Display
The interface will display the specific information that can be
detected, including signal strength and signal source, and will
recognize the detected drone frequency and model, press the button
on the screen of the device to enter the settings interface, and
can adjust the brightness and sound.
